JB1

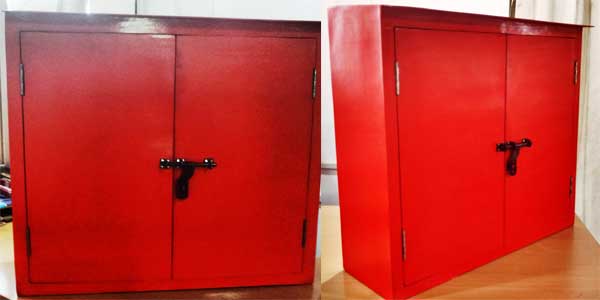

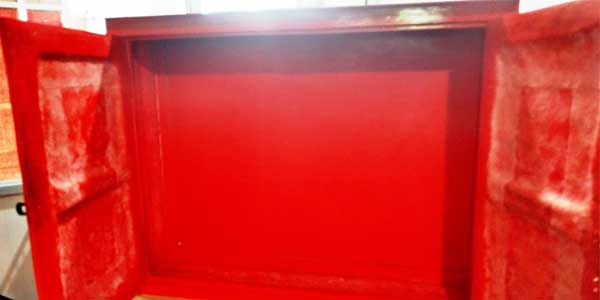

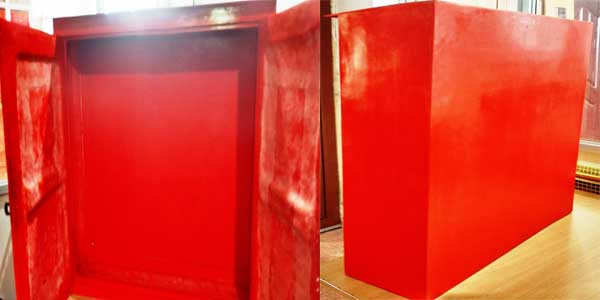

Davitech Junction Box

Materials:
Base : Thermosetting Isophtalic Polyester Resin
Reinforcement : 450 GSM Chopped Strand Glass Mat – 2 layers
Colorants : U.V Stabilized high Gloss pigments.
Dimensions : 32″ Length x 28″ Height x 10″ Depth
Colours : Single colour – As per client’s requirement

SALIENT FEATURES OF FRP JUNCTION BOXES

    1. LIGHT WEIGHT

      FRP boxes can deliver more strength per unit weight than most unreinforced plastics and metals. A lightweight part can help save on working and transportation costs. Less expensive to ship

    2. HIGH STRENGTH

      FRP boxes are formulated in a wide range of tensile, flexural, compression, and impact strengths.

    3. CORROSION RESISTANCE

      FRP boxes eliminates painting and costly maintenance costs. FRP can also survive in many environments in which other materials cannot survive, including stainless steel. Equal to stainless steel in corrosion and chemical resistance, and far better than carbon steel. They are UV stable and will not rot when exposed to wet and corrosive environment. It is essentially inert to most corrosive environments.

    4. DIMENSIONAL STABILITY

      FRP boxes can be maintained within a good tolerance range of 0.2 – 0.5mm and hence allows for accessories to be fit together with little or no machining. Much easier to punch, drill or saw

    5. Thermal / Electrical Insulation.

      FRP boxes have excellent thermal insulation.(1000 times less heat conductor than aluminum. It does not have any spark risks due to contact with other materials. Also, FRP boxes have excellent electrical Insulation. (~ 6 KV/mm).

    6. Long Life

      FRP boxes exhibit excellent lifetime characteristics, even in extremely harsh environments.

Performance Comparison of Enclosure Materials
Fiberglass Stainless Steel Carbon Steel PVC Polycarbonate
Corrosive Resistance Excellent Excellent Poor Excellent Fair
Chemical Resistance Excellent Excellent Poor Very Good Good
Relative Cost Low High Low to Moderate Low Low to Moderate
Drilling, Punching & Cutting Very Easy Extremely Hard Hard Very Easy Easy
Dielectric Strength Electrical Insulator Electrical Conductor Electrical Conductor Electrical Insulator Electrical Insulator
Weight Light Heavy Heavy Light Light
